Description

Vacuum pump desiccator setup Rs. 32,800 + TAX ( or you can by your self)

Rapid chloride penetration test (RCPT) apparatus is laboratory device to find Electrical Indication of Concrete’s Ability to Resist Chloride Ion Penetration and to find chloride diffusion coefficient of concrete for predicting service life, durability based design, and durability-based quality control, of concrete structures. This fully automatic device can log data after each 30mins and shows the logged value of all 3 channels simultaneously on the 2nd display.
It’s automatic shutdown feature after 6 hrs. That is after completion of test makes it very unique, user can keep machine on testing for 6hrs before leaving the lab in the evening. Data will be logged in Memory/pen drive.

Its Bluetooth feature can connect your Android mobile to access the data remotely and readings can be shared by WhatsApp. Complying with various National and international standards like ASTM 1202, AASHTO T 277.

Specification:
Voltage : 60V DC +/- 0.1V
Current Measurement accuracy : +/- 1mA
Voltage Cell : Symmetrical poly (methyl methacrylate) Chamber Suitable for NACL and NAOH to conduct RCPT
Ambient temperature : 20-25 degree Celsius Tri Permeability chamber Online temperature sensing with 3 individual
sensor slot with accuracy of +/- 1 degree Celsius.
Input Voltage 100v-265v
Double display with automatic logging facility of data at the front panel, 1st display for instant data reading 2nd display for logged data of all 3 channel simultaneously.

Features
1. Bluetooth connectivity.
2. Automatic Data logging after each 30mins in Android mobile.
3. Auto power-off after test completion of 6hrs.
4. Memory card provision for data logging.
5. Data transferable to PC using SD card.
6. Temperature sensor LED notification if Temperature goes above 90 degree.
7. USB Port.

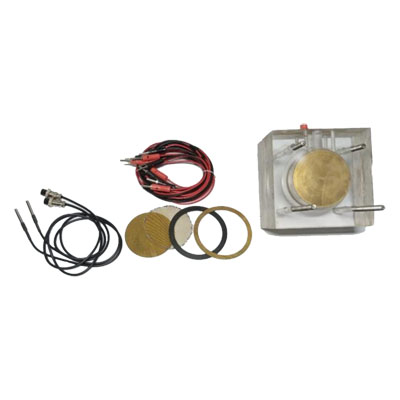

Standard Package:
1. Main Unit machine.
2. Auto sealable Acrylic cells (chamber) with rubber gasket.
3. Pair of cable with banana connector for each cell Red, Black (chamber).
4. Temperature sensor for individual cells.
5. Studs & Nut for tightening.
6. Memory (card Reader) or Pen drive.
