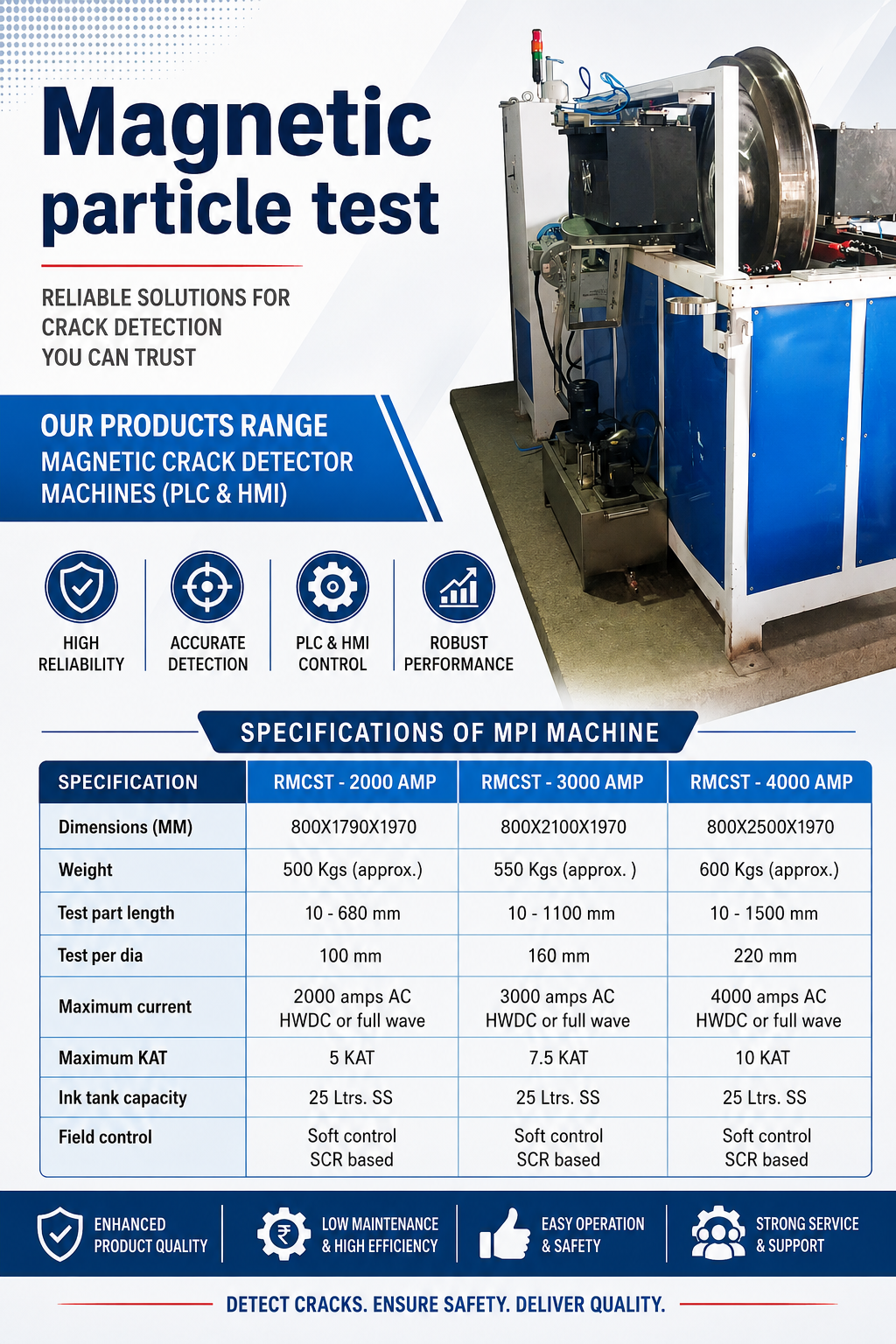

Magnetic particle test

Kolkata Xray > Magnetic particle test
📊 Technical Specifications Comparison

Specifications of MPI Machine RMCST – 2000 AMP RMCST – 3000 AMP RMCST – 4000 AMP
Dimensions (MM) 800 x 1790 x 1970 800 x 2100 x 1970 800 x 2500 x 1970
Weight ~500 Kgs (approx.) ~550 Kgs (approx.) ~600 Kgs (approx.)
Test Part Length 10 – 680 mm 10 – 1100 mm 10 – 1500 mm
Test Part Diameter 100 mm 160 mm 220 mm
Maximum Current 2000 Amps 3000 Amps 4000 Amps
Current Output Options AC, HWDC, or Full Wave AC, HWDC, or Full Wave AC, HWDC, or Full Wave
Maximum KAT 5 KAT 7.5 KAT 10 KAT
Ink Tank Capacity 25 Liters Stainless Steel 25 Liters Stainless Steel 25 Liters Stainless Steel
Field Control Type Soft Control SCR Based Soft Control SCR Based Soft Control SCR Based

⚡ Key Engineering & Control Features
    • Automation Ready: Smart control options available with integrated PLC & HMI interfaces for easy programming and data tracking.
    • Versatile Current Output: Offers exceptional flexibility with selectable AC, HWDC, or Full Wave modes for optimized testing variations.
    • Corrosion Resistance: Crafted with a premium 25 Ltrs Stainless Steel (SS) ink tank setup to survive intensive daily chemical immersion.
    • Soft Control Tuning: Reliable and stable field manipulation through an intelligent SCR-based software control mechanism.
